Tuttnauer T-Edge

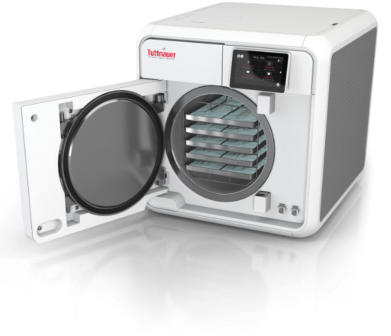

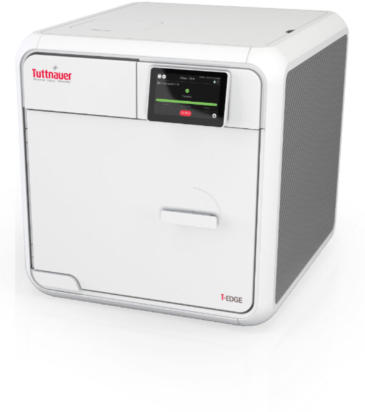

T-Edge 10 Tuttnauer Automatic Autoclave
(T-EDGE10S) Class N/S NOT Pre And Post Vacuum $4995.00
(T-EDGE10B) Class B Pre And Post Vacuum Autoclave $5905.00
(T-EDGE11S) Class N/S NOT Pre And Post Vacuum $5585.00
(T-EDGE11B) Class B Pre And Post Vacuum Autoclave $6800.00
Technical Specifications
Overall Dimensions (DxWxH)
T-Edge 10:21.1" x 18.89” x 19.7”T-Edge
11:21.1" x 19.68” x 19.68”
Chamber Size (Depth x Ø)
T-Edge 10: 18” x 10” diameterT-Edge
11: 18” x 11” diameter
Standard Cassette Capacity
T-Edge 10: 3 Full + 3 HalfT-Edge 11: 4 Full + 4 Half
Tray Capacity
5 Trays
Connections
1 Ethernet port, 4 USB ports, WiFi,
integrated automatic water filling and drain connection
Weight
T-Edge 10: 117 lbsT-Edge 11: 124 lbs
Power Supply & Frequency
120V, Freq. 60Hz230V, Freq. 60Hz
T-Edge is the only autoclave in the market than can be upgraded from Class S to Class B in the field with a software only upgrade.
The following are the general descriptions of classes B and C:
In contrast to Class S, Class B (that conforms to European standards) primarily uses a deeper vacuum in the autoclave chamber than
Class S, which allows for more thorough removal of air from the most difficult load types. This feature enables the system to perform
vacuum in difficult hollow or porous instruments as well as perform effective sterilization of these materials
Class B autoclave designed to meet the most current sterilization standards ANSI/AAMI ST55.
